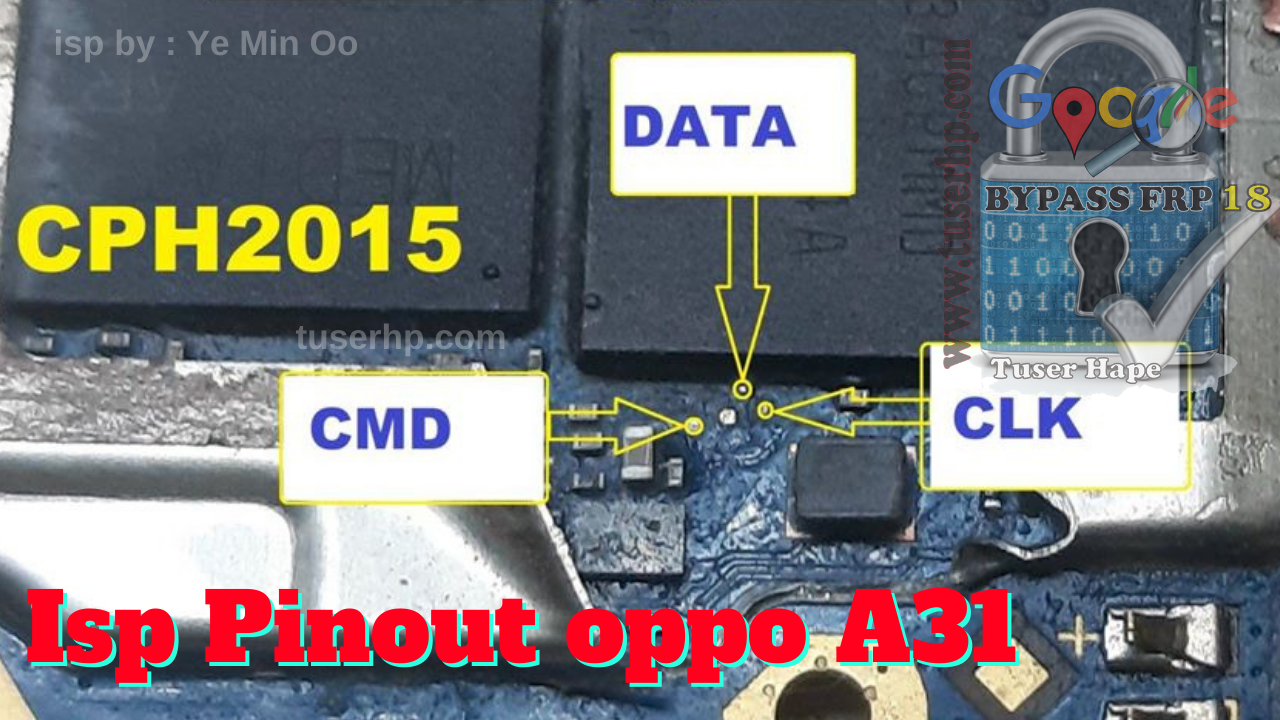

ISP Pinout Oppo A31 (2020) CPH2015

File Dump eMMC OPPO A31 CPH2015,oppo a31 2020 lupa pola reset by direct ufi cph2015

Sebelum melakukan hapus kunci pola dan frp ada baiknya cek dulu versi software perangkat dengan cara berikut :
Untuk mengetahui Versi Software Oppo  => Tab Emergency Call Lalu Ketik *#899# =>> EngineerMode =>>> SoftwareVersion

Realme A31 CPH2015 lupa pola reset by direct ufi box :
Selanjutnya , identify ---> special task --> factory reset ---> clear frp lock ---> done .


Clear User Lock, you can try using ISP method via UFI eMMC ToolBox, use "Factory Reset" under Special Task in User Partition Tab.Or using AETOOL by MRTkey (Android Emmc Tool)

Log info :
Init bus...
VCC: 3.3 V, VCCQ: 1.8 V
Bus: 1 bit (SDR 24MHz)
Access mode: sector mode
Power supply: dual-voltage (1.70-1.95V, 2.7-3.6V)
 Card/BGA: BGA (Discrete embedded) - High density MMC
 Manufacturer ID: 0x90 (SK Hynix)
 Product name: hC9aP3 (0x684339615033), rev: 0x01, serial number: 0x50B41490
 Manufacturing date: Jan 2020
CID: 90014A68 43396150 330150B4 149017F6
CSD: D0270032 8F5903FF FFFFFFEF 8E400042
EXT_CSD revision: 1.8 (MMC v5.1)
Partition info:
 Boot1: 4096 KiB
 Boot2: 4096 KiB
 RPMB: 16384 KiB
 User area: 58.24 GiB(62,537,072,640 bytes)

Read more  : Firmware Oppo A31 (2020) CPH2015
Download Oppo A31 (2020) Dump File : GDriveMshare / AndroidFileHost
TRY At Your Own Risk ( silahkan dicoba , resiko ditanggung sendiri )
